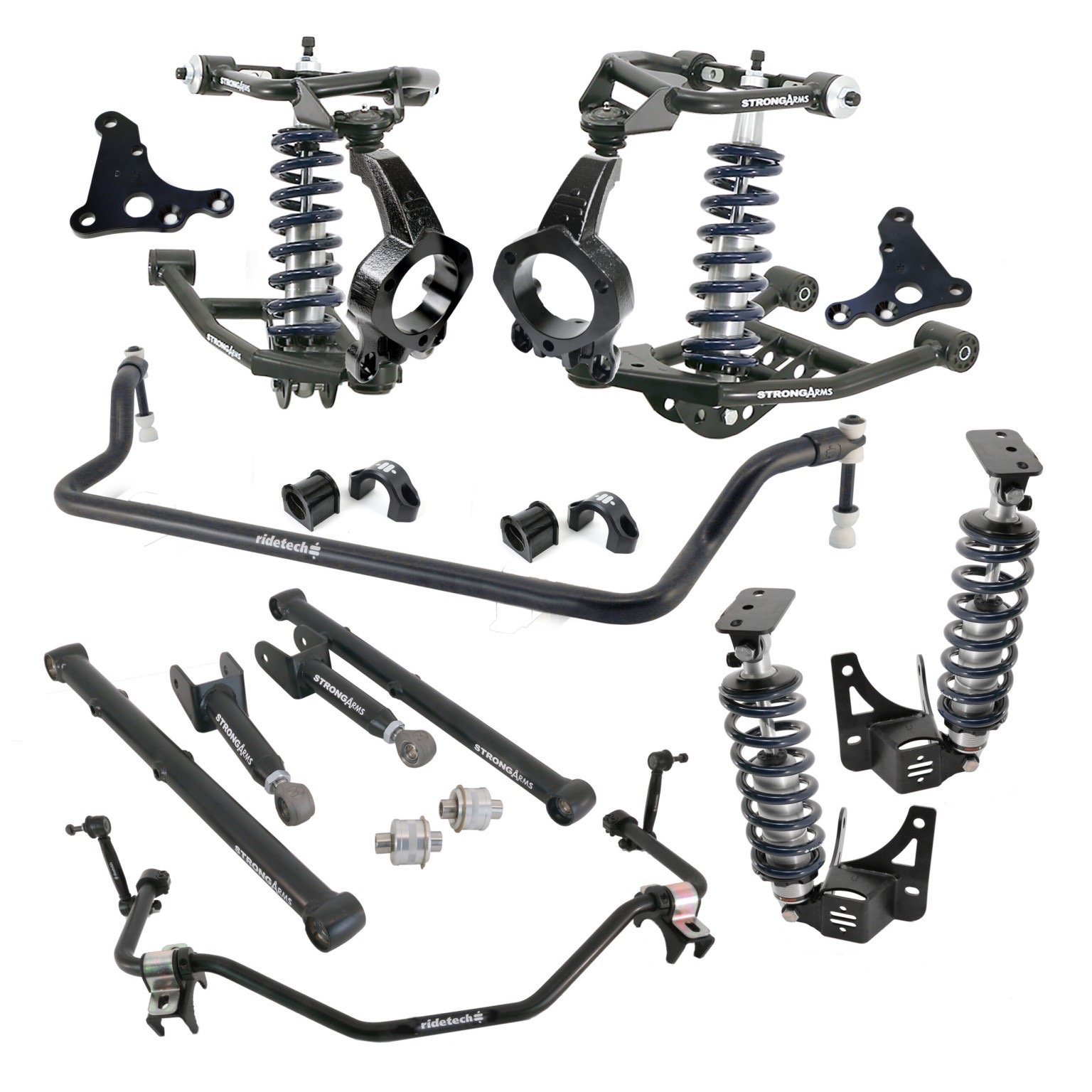

CoilOver System for 64-67 GM “A” Body. Includes front & rear HQ Series CoilOvers, front upper & lower StrongArms, rear upper & lower StrongArms, Tall spindles, and front & rear MuscleBars.

This Coil-Over System is specifically designed for the 1964-1967 GM A-Body Platform and includes everything needed to create modern drivability from vintage muscle. The package contains front upper and lower control arms, tall spindles, front & rear sway bars, rear StrongArms and 4 HQ Series Coil-Overs. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality. 1964-1967 GM A-Body includes Chevelle, Cutlass, El Camino, F85, GTO, LeMans, Malibu, Skylark, Special, Sportwagon, Tempest and Vista Cruiser.

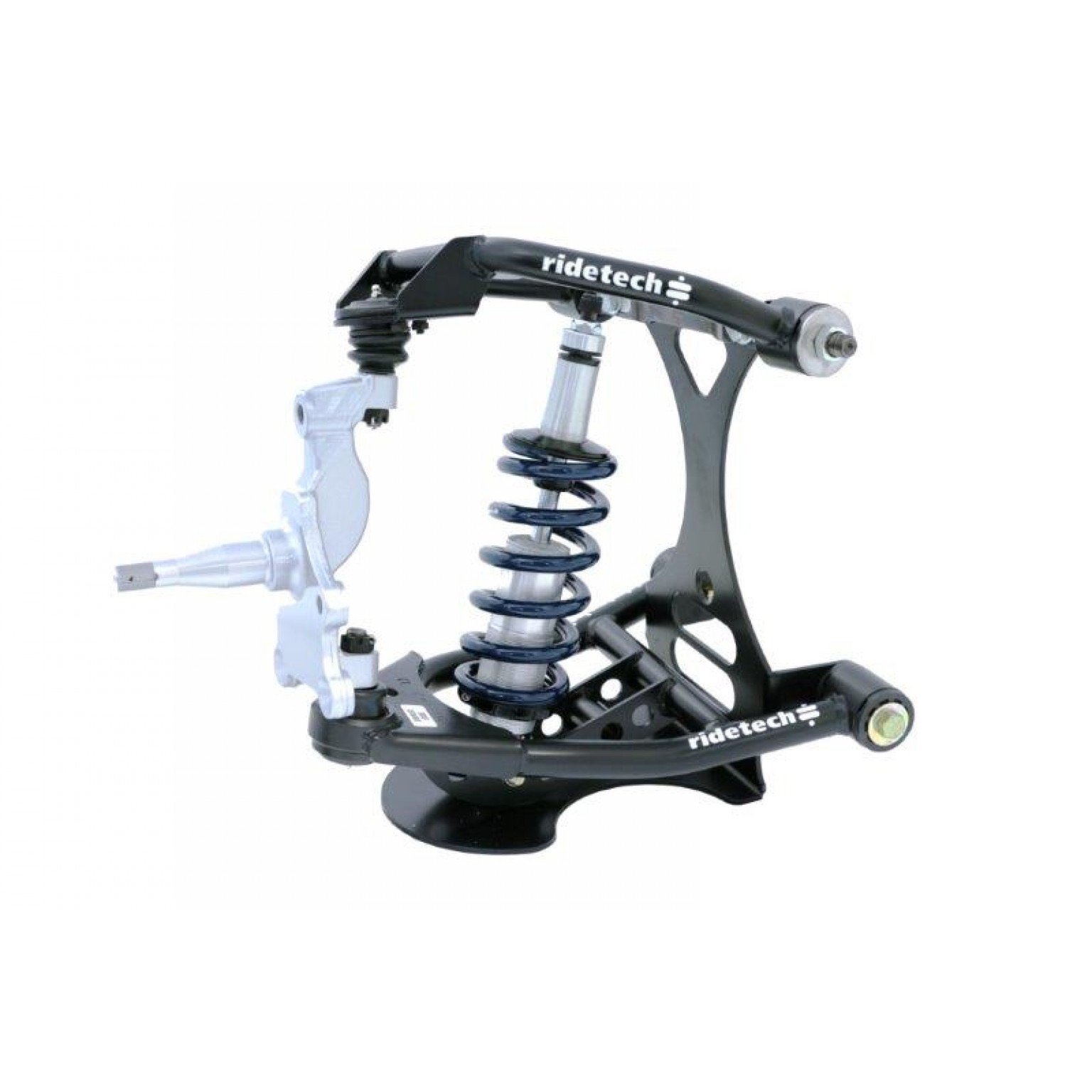

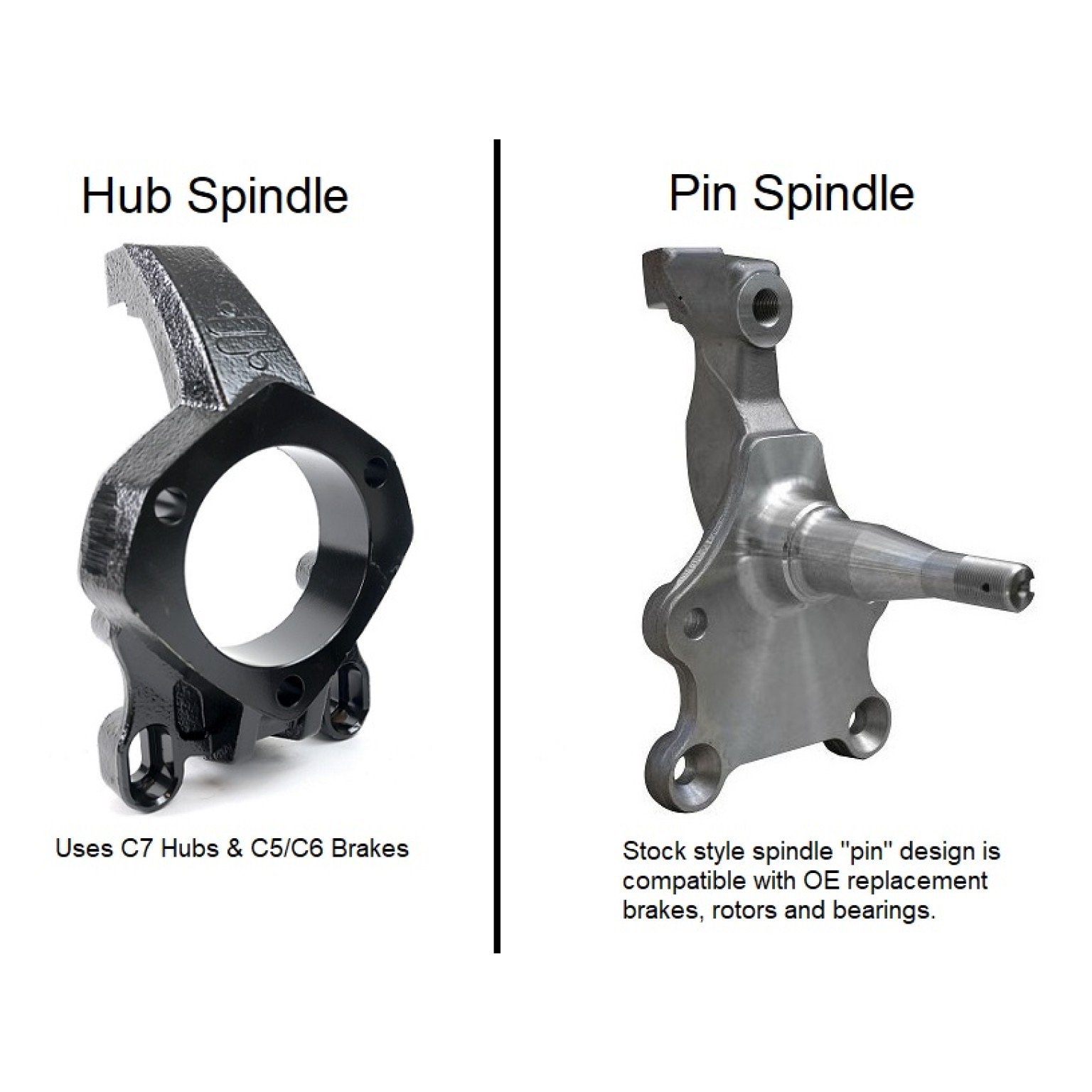

Tall “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel. Compatible with all brake kits designed to fit the stock disc brake spindle.
Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Corvette hubs and brakes. Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE and aftermarket (caliper brackets included).

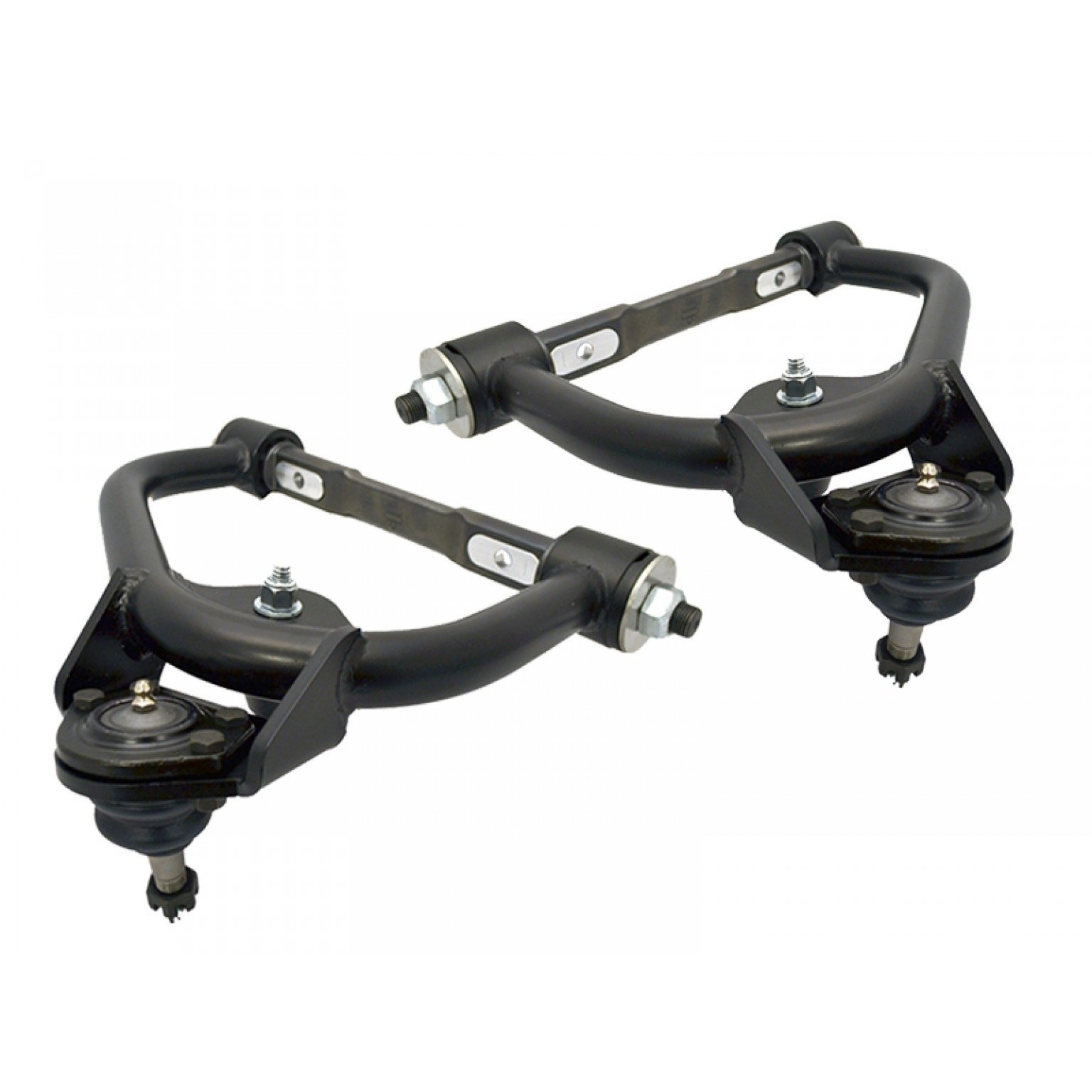

Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

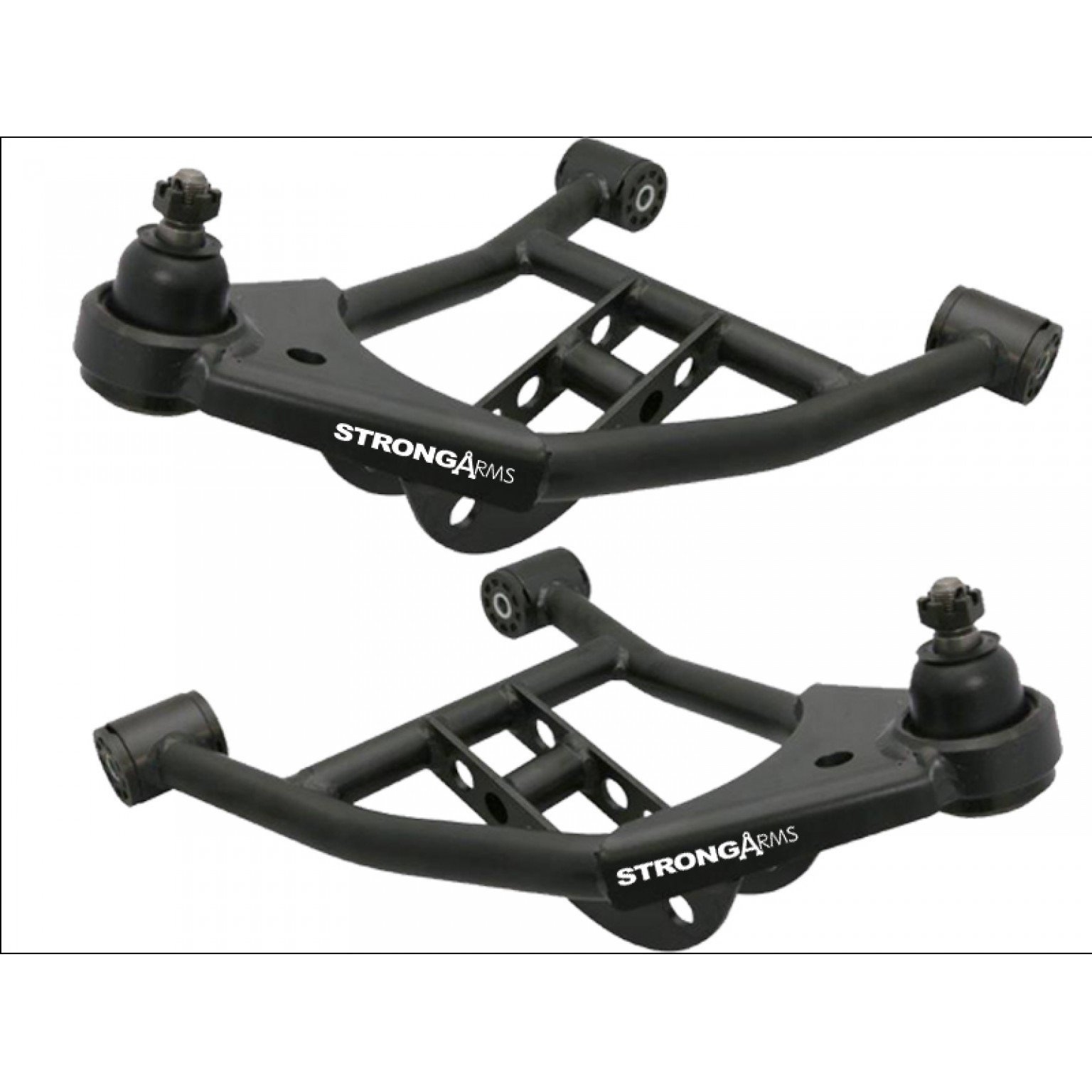

Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

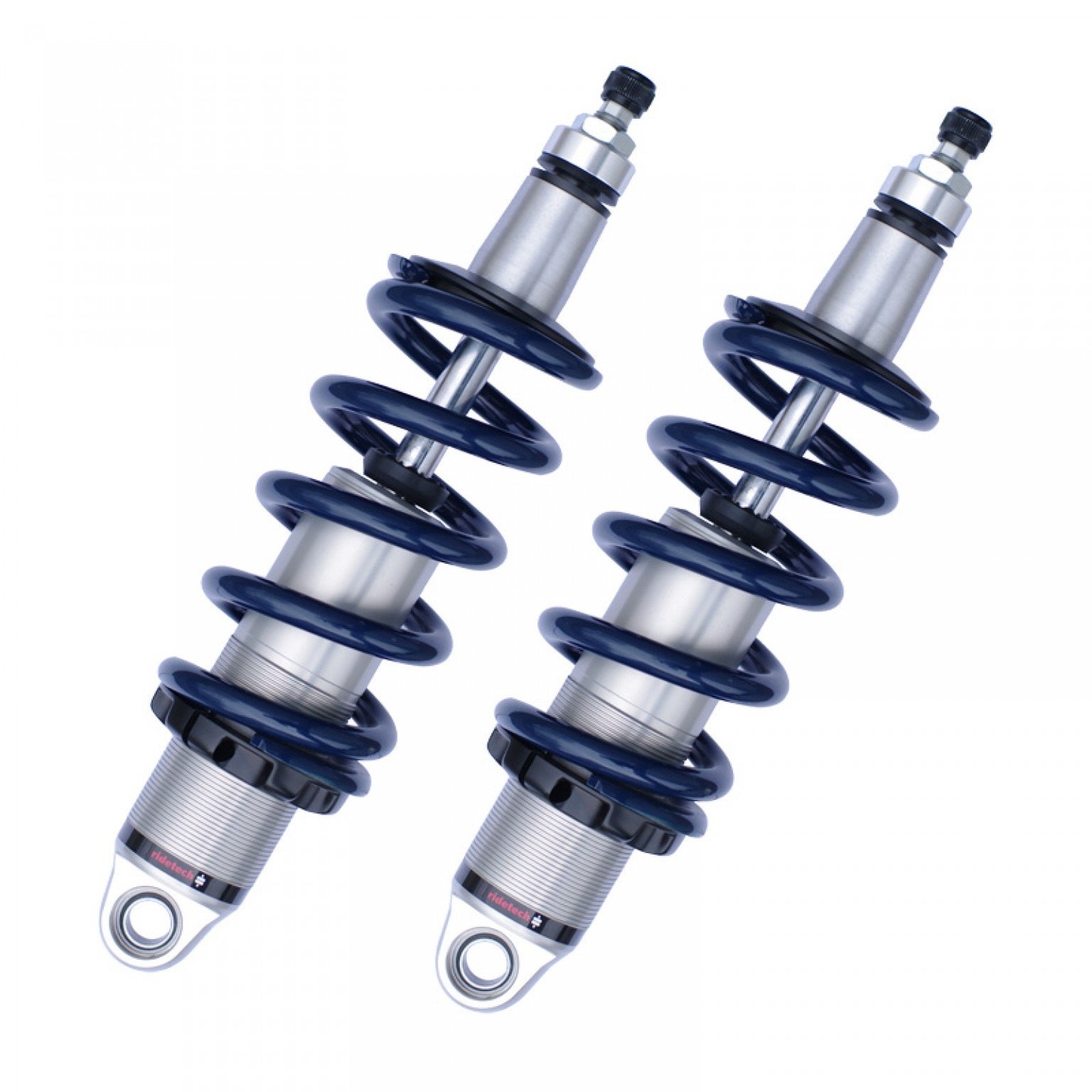

HQ Series Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound knob, located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Brackets are included with the rear coil-overs for easy attachment to the frame and to the 10/12 bolt rearend or Currie 9″. Brackets for a Moser rearend are also available.

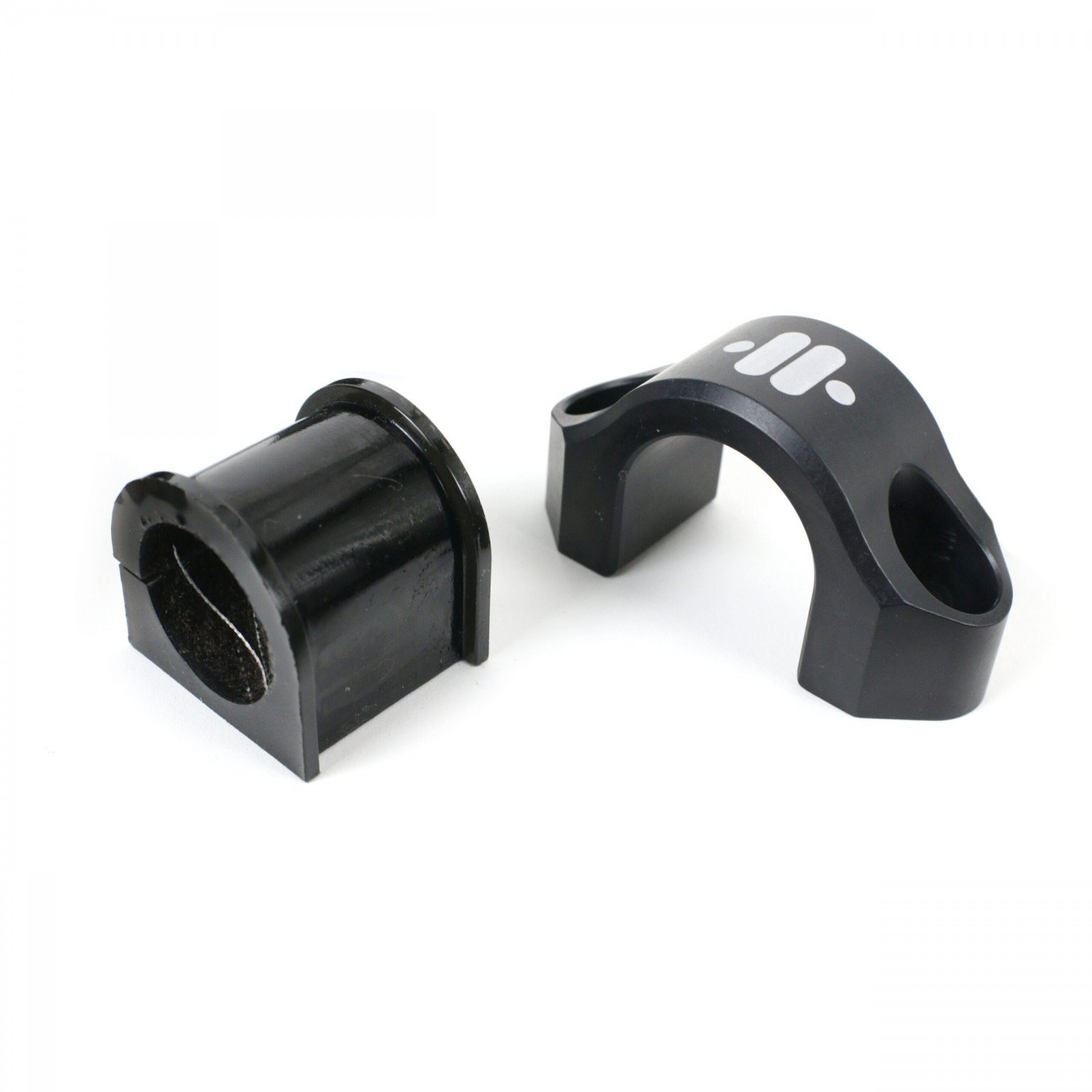

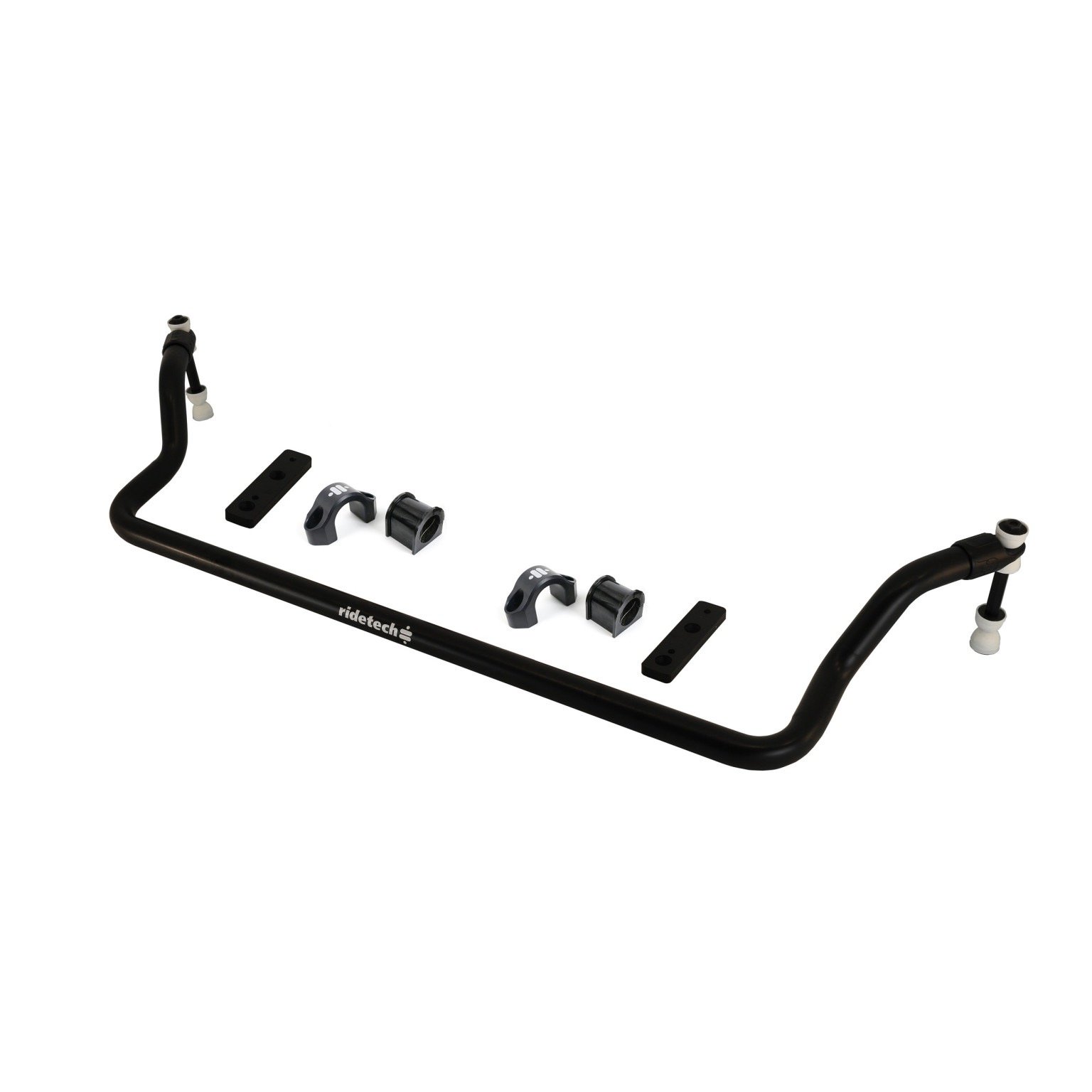

Front Sway Bar helps reduce body roll and creates room for wider front tires. An adjustable-rate Rear Sway Bar is also included, which is a great tool for tuning front/rear grip. Both include billet aluminum mounts (anodized black) and low friction bushings.

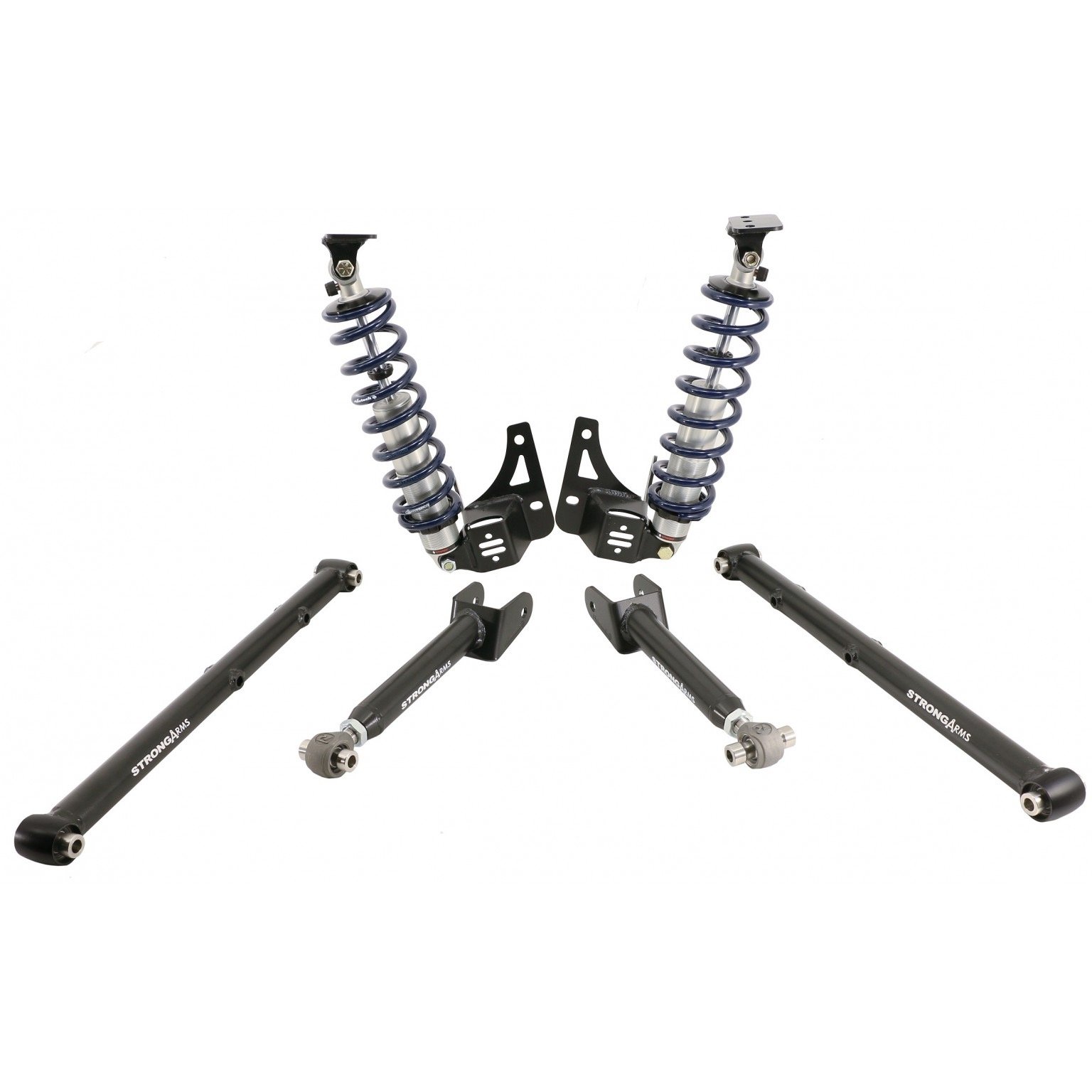

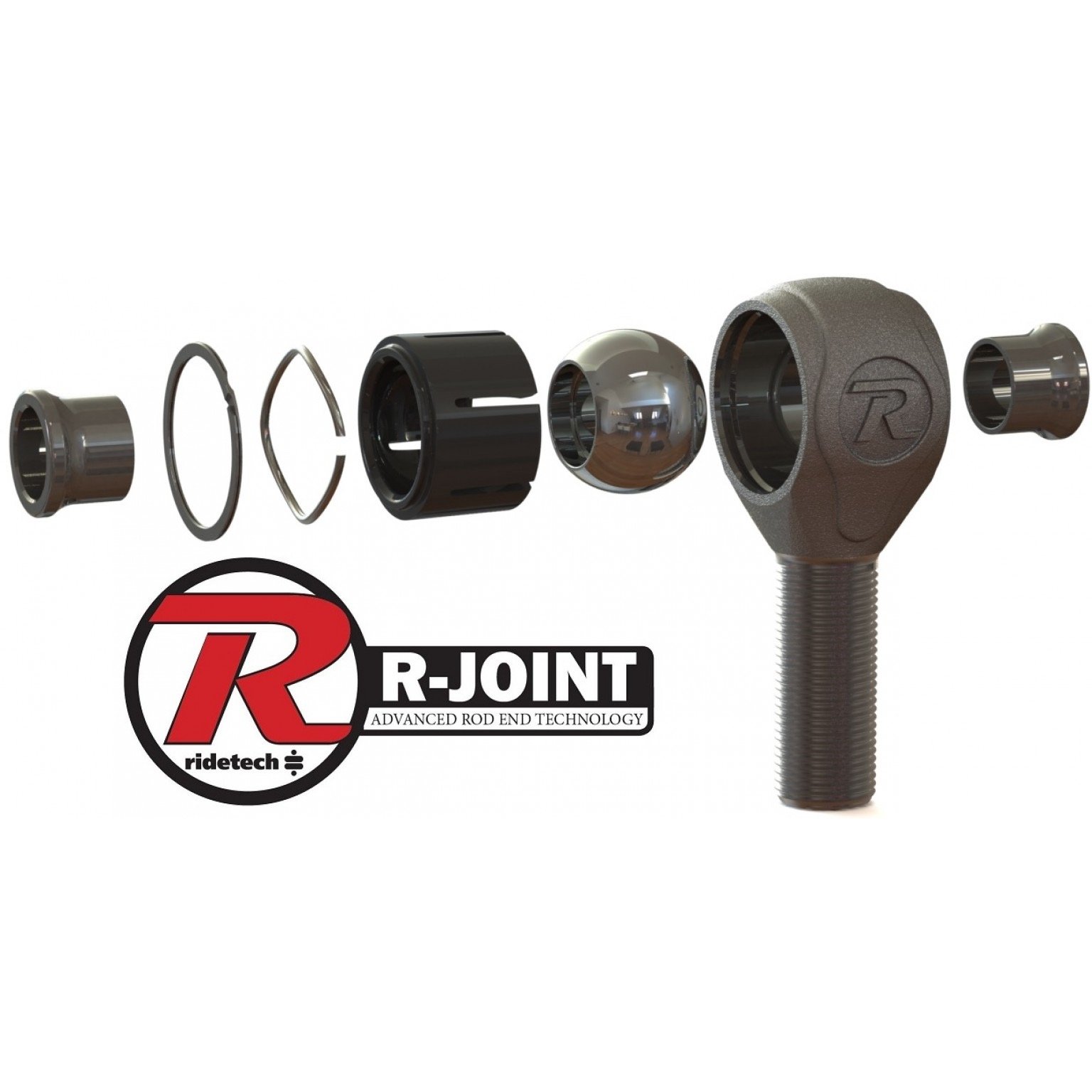

Rear StrongArms provide added strength to help get the power to the pavement and utilize R-Joint Technology to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.
